Large Glass Anti-Reflection Sputter Deposition Production Line PVD Machine
Large Glass Anti-Reflection Sputter Deposition Production Line PVD Machine

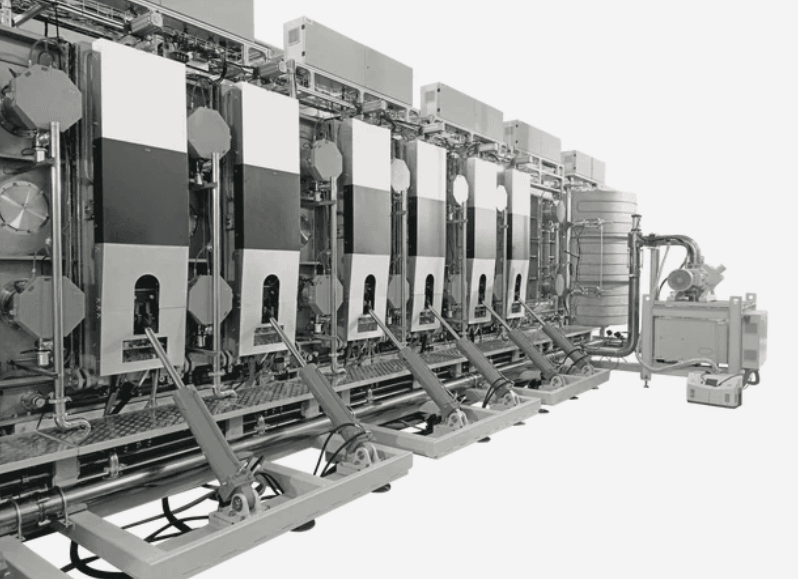

The large glass anti-reflection sputter deposition production line is an advanced vacuum coating system designed for the efficient and precise application of high-quality anti-reflective (AR) coatings on large glass panels. Utilizing magnetron sputtering technology, this system ensures uniform thin-film deposition, stable process control, and scalability for industrial-scale production.
Key Features
- Magnetron Sputtering Technology: Provides controlled and consistent thin-film deposition for anti-reflection coatings, improving optical transparency and reducing surface reflectivity.
- High Uniformity: Achieves a coating uniformity of ±2% across large-area substrates, ensuring consistent performance.
- Large Substrate Compatibility: Supports glass panels up to 1,500×1,200 mm for large-scale production.
- Multi-Layer Coating Capability: Enables the deposition of multi-layer AR structures using materials such as SiO₂, TiO₂, and other optical-grade materials.
- Real-Time Process Monitoring: Integrated monitoring systems for plasma stability, film thickness, and deposition rate ensure reliable and repeatable coating quality.
- Inline Production System: Continuous inline processing for high throughput and reduced production downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Deposition Technology | Magnetron Sputtering |
| Coating Material | SiO₂, TiO₂, and other AR materials |
| Substrate Type | Glass panels |
| Substrate Size | Up to 1,500×1,200 mm |
| Coating Uniformity | ±2% |
| Film Thickness Range | 20nm - 500nm |
| Deposition Speed | Up to 5nm/s |
| Vacuum Pressure | ≤1×10⁻⁴ Pa |
| Automation | Fully automated inline system |
| Heating Capability | Up to 350°C |
Applications
- Display Panels: AR layers for large-format displays, improving optical clarity and reducing glare.
- Automotive Glass: Anti-reflection coatings for windshields and interior screens to enhance visibility.
- Optical Glass: Precision coatings for lenses and optical components requiring low reflectivity.
- Architectural Glass: Anti-reflective coatings for windows, facades, and skylights to enhance light transmission.
Process Advantages
- Stable Coating Process: Real-time control of deposition parameters ensures consistent film quality and thickness.
- Scalable Production: Designed for large-area glass panels, meeting the needs of high-throughput production.
- Material Efficiency: Optimized sputtering processes minimize material waste while maximizing coating coverage.
- Energy Management: Integrated systems reduce power consumption, enhancing cost-efficiency during continuous production.
With its robust technical specifications and focus on high-quality output, it is the ideal solution for industries seeking reliable and efficient anti-reflective coatings on large glass panels. Utilizing precise magnetron sputtering technology, real-time process control, and compatibility with large glass substrates, SIMVACO provides a reliable solution for enhancing optical performance in automotive, display and architectural industries.
