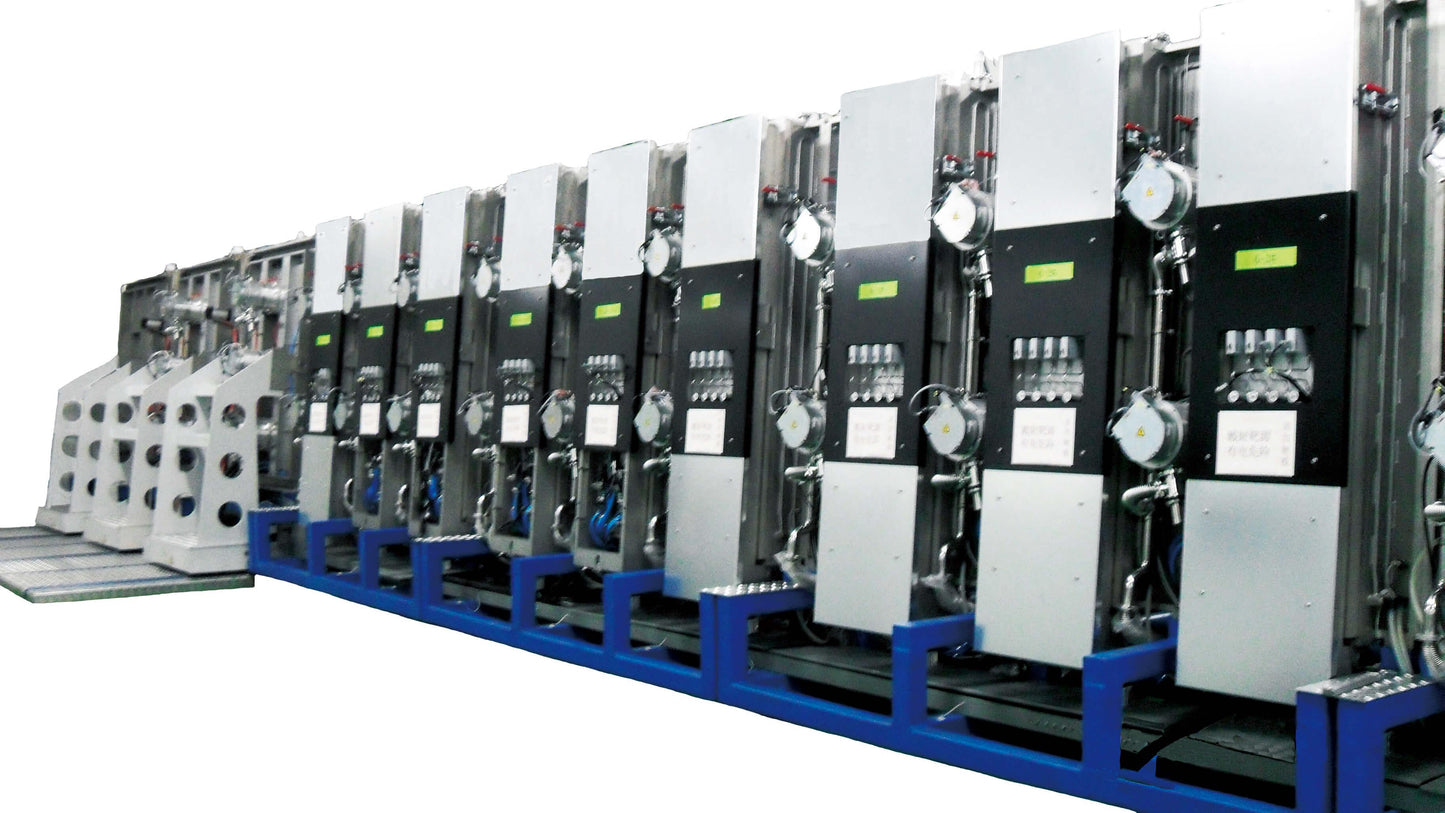

Large Anti-Reflection ITO Magnetron Sputtering Coating Production Line
Large Anti-Reflection ITO Magnetron Sputtering Coating Production Line
Our Large Anti-Reflection ITO Magnetron Sputtering Coating Production Line is engineered to deliver high-quality Indium Tin Oxide (ITO) coatings, specifically designed for applications requiring superior optical performance and conductivity. This advanced production line utilizes magnetron sputtering technology to achieve exceptional anti-reflective properties on large substrates, making it ideal for the display, photovoltaic, and optical industries.
- Magnetron Sputtering Technology: Ensures precise and uniform ITO deposition with stable plasma control for high-quality thin-film coatings.
- Anti-Reflection Capability: Deposits ITO layers with low reflectivity and high transparency, enhancing optical performance.
- High Uniformity: Achieves ±3% thickness uniformity across large glass or polymer substrates.
- Large Substrate Processing: Supports substrates up to 2,000×2,500 mm for large-scale production.
- High Throughput: Optimized for continuous inline processing, supporting high deposition speeds to improve production efficiency.
- Process Control: Real-time monitoring and feedback ensure consistent coating quality with minimal defects.
- Material Compatibility: Works with various substrate types, including glass, PET, and other flexible materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Deposition Technology | Magnetron Sputtering |
| Sputtering Targets | ITO (Indium Tin Oxide) |
| Substrate Size | Up to 2,000×2,500 mm |
| Coating Uniformity | ±3% |
| Film Thickness Range | 20nm - 500nm |
| Deposition Speed | Up to 5nm/s |
| Vacuum Pressure | ≤1×10⁻⁴ Pa |
| Process Automation | Fully automated inline system |
| Material Options | ITO, SiOx, or custom anti-reflection films |
Applications
- Display Panels: Anti-reflective and transparent conductive coatings for LCD and OLED displays.
- Touch Panels: ITO coatings for improved conductivity and reduced surface reflection on touchscreens.
- Optical Glass: Coatings for camera lenses, optical filters, and precision optical devices.
- Automotive Displays: High-performance anti-reflective layers for in-car screens and HUD (Head-Up Display) systems.
- Architectural Glass: Transparent conductive coatings for energy-efficient smart glass applications.
Benefits
- Enhanced Optical Performance: Reduces surface reflectivity while maintaining high light transmittance.
- Scalable Production: Inline continuous processing for large-area substrates and high-volume output.
- Precision Coatings: Real-time monitoring ensures uniform film deposition and optical consistency.
- Flexible Substrate Support: Compatible with glass and flexible films for diverse applications.
Contact Us to learn more about how this system can enhance your production processes.
